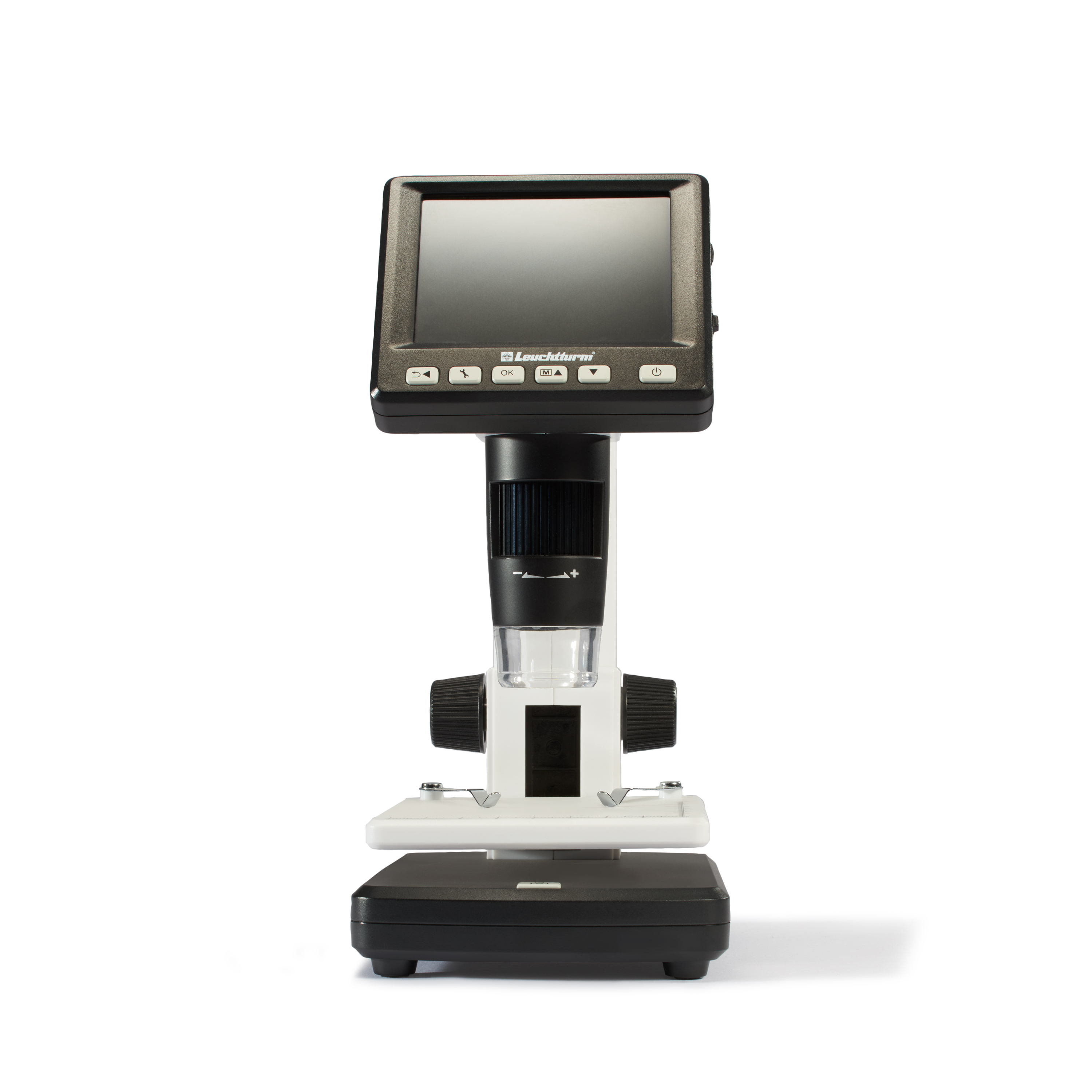

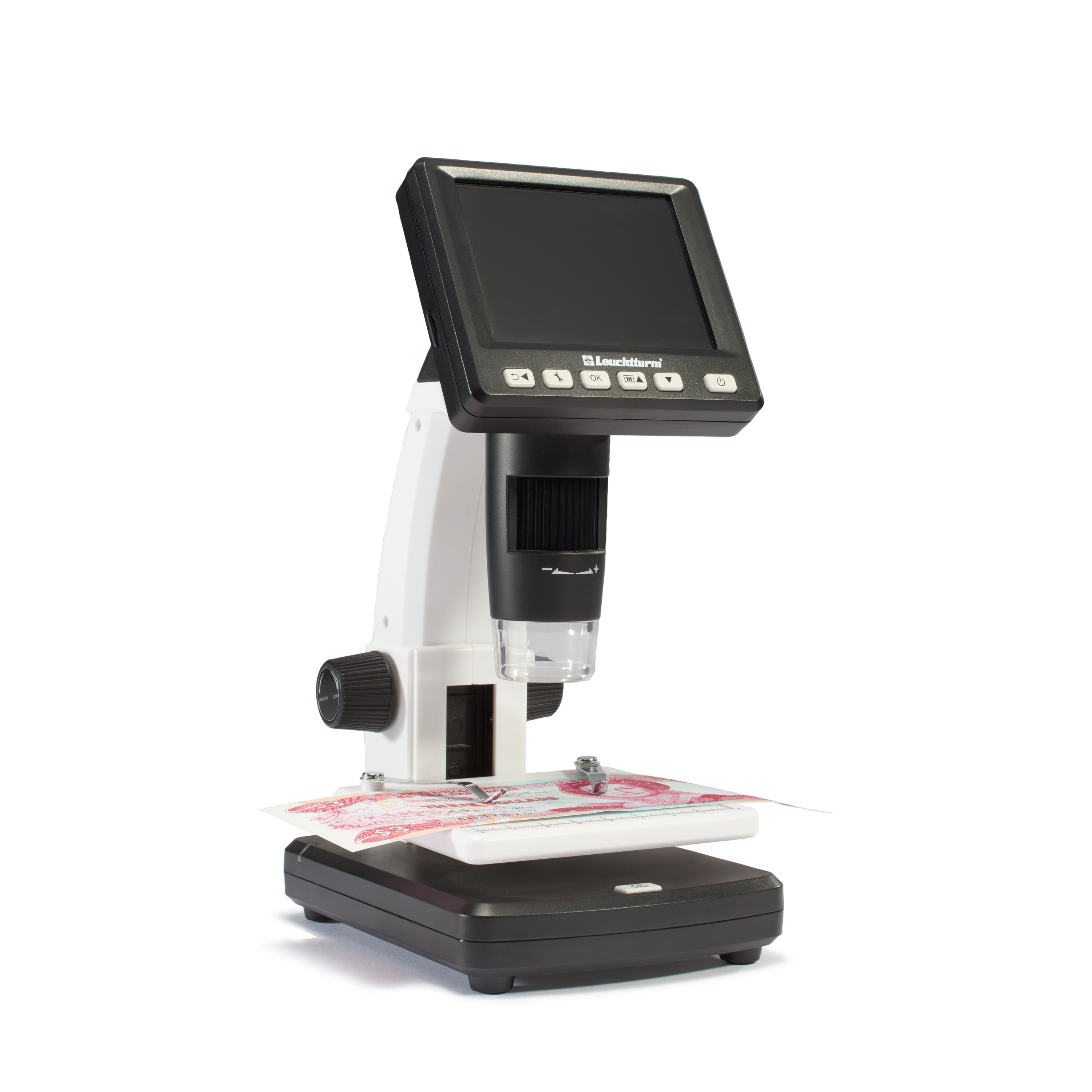

With its built-in 3.5" LCD screen, this digital microscope is easy to use and doesn’t have to be plugged into a PC or laptop. The 5-megapixel active pixel sensor, the 8 LEDs for illumination, and the adjustable focusing ensures excellent definition and crystal-clear images. The 4x digital zoom enables up to 500x magnification. Save your photos and videos on the 4 GB MicroSD card included. Images can also be viewed on your PC via a USB 2.0 connection or using the AV output on your TV. The rechargeable Lithium-ion battery means that you can take this microscope with you wherever you go and you are no longer bound to a plug socket or computer. The software features a calibration function for exact measurement of distances and areas of the magnified objects and is quick and easy to install. The LCD digital microscope is ideal for a whole host of uses, whether for study, school, or leisure, and enables detailed observation of stamps, coins, banknotes, minerals and more. Suitable for all current computers. Overall size: 105 x 230 x 150 mm (4 1/8 x 9 x 5 7/8").

Technical details
• 3.5" LCD colour screen
• 5-megapixel active pixel sensor (CMOS sensor)
• 10–500x magnification
• Built-in 4x digital zoom
• Resolution: Image: 12 M, 9 M, 5 M, 3 M, 1.3 M / Video: 640 x 480 pixels (VGA)
• Maximum viewable area: approx. 20 x 15 mm (¾ x ?")
• Suitable for objects with a height / thickness up to 40 mm (viewable area: approx. 14 x 11,5 mm /
½ x ½")
• Light: 8 white LEDs (adjustable, can be switched off)
• USB 2.0 connection
• Incl. software: Windows XP / Vista / Win7 / Win 8 / Mac OS 10.6 or later (measuring software
only works with Windows), multilingual (e. g. German, English, French, Spanish)
• Operating instructions: English, German, French
• Power supply: wall plug transformer, 3.7 V Li-ion battery
• Delivery includes: LCD digital microscope, Li-ion battery, adapter, USB cable, AV cable, CD with
software and operating instructions, 4 GB microSD card, cleaning cloth

Download manual & software: Support
